Folding Carton Packaging Still Runs the Retail World — Here’s Why
Walk into any supermarket, pharmacy, or cosmetics aisle. Count the products sitting on shelves. Eight out of ten come in some form of folding carton packaging . Cereal boxes, skincare cartons, pharmaceutical sleeves, supplement packs, tea boxes — the list goes on. And behind nearly every one of those boxes sits a supply chain that traces back to a printing factory, often in southern China.
If you are sourcing custom folding carton boxes for your brand, you already know the basics. But knowing which box style fits your product, which paperboard grade balances cost and quality, and which print method avoids blowing your budget — that is where most buyers get stuck. Add in tuck boxes and kraft boxes, and the decisions multiply fast.
This guide walks through all three categories — folding cartons, tuck boxes, and kraft boxes — from the perspective of a buyer sourcing folding carton packaging China suppliers. No fluff. Just the structural, material, and cost details you need to spec your next order correctly.

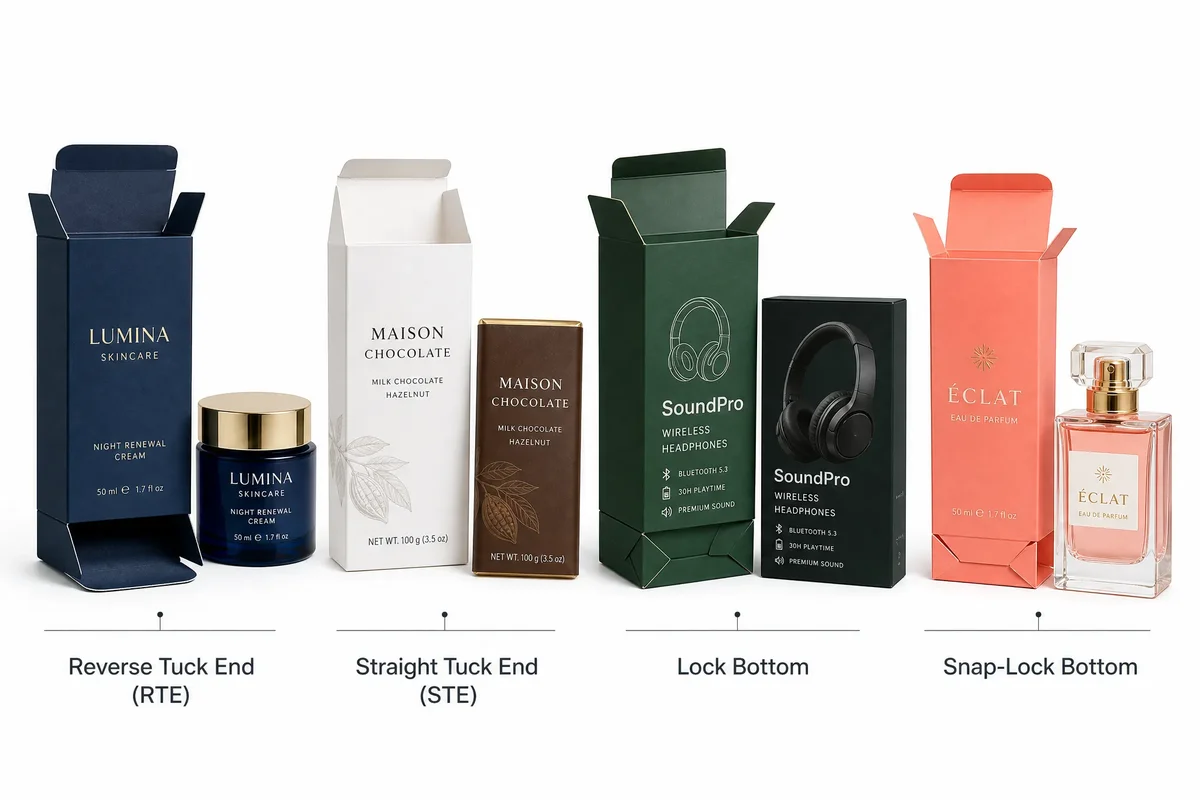

Folding Carton Box Styles — Pick the Wrong One and Your Product Pays
Folding cartons are not one-size-fits-all. The box style you choose affects everything: structural strength, assembly speed, shelf presentation, shipping cost, and even how much material gets wasted during production. Below are the four styles that dominate the market.
Reverse Tuck End (RTE) — The Workhorse of Retail Packaging
The reverse tuck end box has top and bottom flaps that close in opposite directions. The top flap tucks toward the back panel. The bottom flap tucks toward the front. This opposite-direction design is incredibly material-efficient because the die-cut blanks nest tightly together on the paperboard sheet. Less wasted board means lower cost per unit.
RTE boxes work well for lightweight products — cosmetics, small electronics, OTC pharmaceuticals, and food items like tea bags or snack bars. Assembly is fast, whether manual or automated. The trade-off? The bottom flap leaves a visible raw edge on the front face of the box, which some premium brands find distracting. If your product sits on a shelf with the front fully visible, that small detail might matter.
Straight Tuck End (STE) — When Shelf Appeal Comes First
Straight tuck end boxes have both flaps folding toward the same side — usually the back. This keeps the front panel completely clean. No raw edges. No interruptions. Just uninterrupted branding real estate.
STE boxes feel more polished. They are the go-to choice for premium cosmetics, personal care, and gift items where the unboxing experience matters. Because both flaps fold the same way, access is easier from both ends of the box, which speeds up manual filling on a production line. The downside is material usage. STE blanks do not nest as efficiently during die-cutting, so you lose more board per sheet. That translates to a slightly higher unit price compared to RTE.
Lock Bottom & Auto-Lock Bottom — Built for Weight
Standard tuck-end boxes rely on the tuck flap alone to hold the bottom closed. That works fine for light products. Once your product exceeds roughly 200 grams, gravity starts winning. The bottom bulges. The flap slips out. Your box fails on the shelf.
Lock bottom boxes solve this with a reinforced base. Instead of a single tuck flap, the bottom consists of interlocking panels that fold and lock into place without glue. The most common variant is the auto-lock bottom — also called a crash-lock bottom. When you push the side panels inward, the base “crashes” into a locked position instantly. Assembly takes about two seconds. These boxes handle glass jars, candle tins, bottled beverages, and small hardware without bottom blowout.
Snap-Lock Bottom — The Manual Alternative
The snap-lock bottom, sometimes called a 1-2-3 bottom, requires the user to fold four flaps in sequence to form a secure base. It is stronger than a tuck end but not as fast as an auto-lock. Snap-lock boxes suit heavier items that do not need high-speed packing — think gift sets, specialty foods, or limited-edition releases where assembly speed is not the bottleneck.
Tuck Box Printing — The Structure That Holds Your Brand Together
Tuck box printing is not just about putting graphics on cardboard. The structure itself determines whether the box stays closed during shipping, whether dust gets inside, and whether the consumer can open it without destroying the packaging. Three structural details deserve your attention before you approve any custom tuck box dieline.
Dust Flaps — Small Detail, Big Difference
Look at the side panels on a tuck-end box dieline. Those small extensions on the top and bottom edges are dust flaps. When the box is closed, they fold inward and sit against the inside walls. Their job is simple but critical: they close the gap between the side panel and the tuck flap, preventing product sifting and keeping dust and debris out.
For food products — tea, powdered supplements, spices in inner pouches — dust flaps are non-negotiable. They also add structural rigidity by bracing the side walls against inward pressure. If your supplier’s dieline does not include dust flaps, ask why. The cost difference in die-making is negligible, but the product protection difference is real.

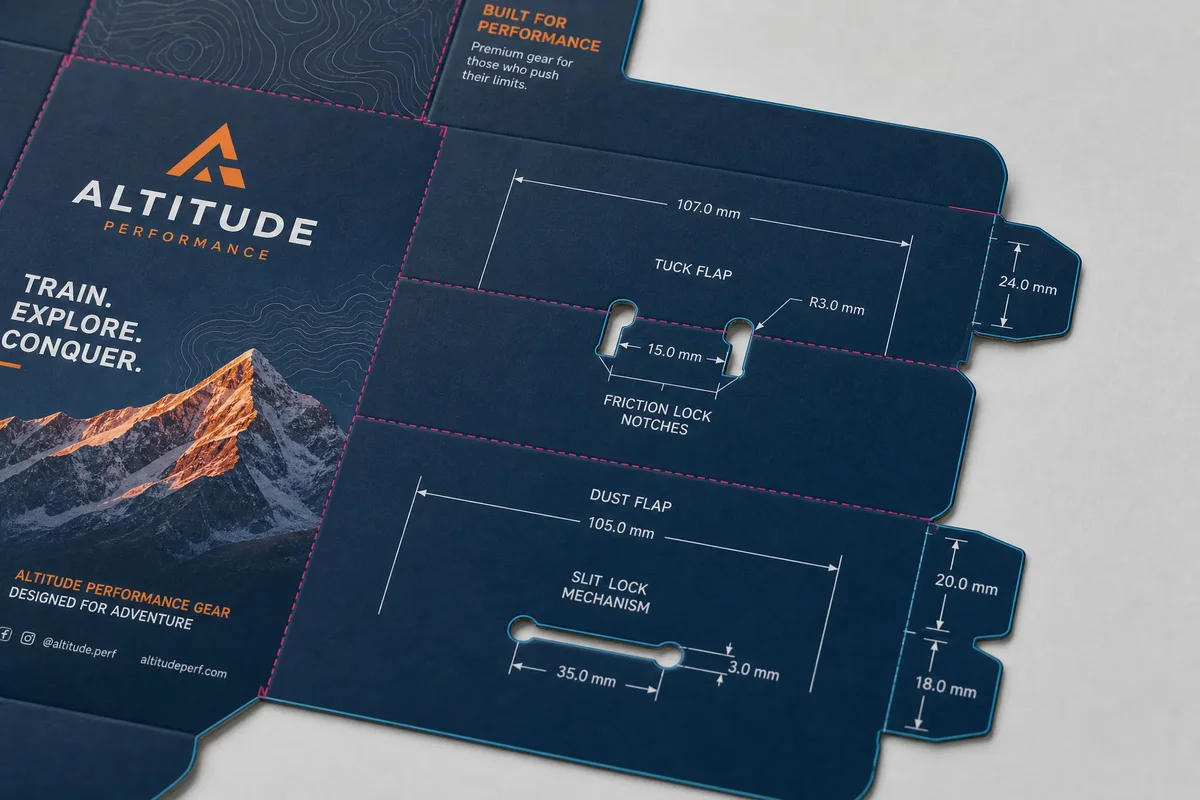

Tuck Flap Design — Friction Lock vs Slit Lock
The tuck flap is the panel that inserts into the box body to hold everything closed. How it locks determines how many times the box can be opened and re-closed before it wears out.
A friction lock relies on the natural tension between the tuck flap and the front panel. It is the simplest, cheapest design and works fine for one-time-use packaging. A slit lock adds small notches on the tuck flap edges that catch behind the dust flaps or side panels. This gives you a more secure closure that survives repeated opening — useful for products consumers access multiple times, like supplement bottles or tea boxes.
If your product gets handled often at retail — picked up, opened, inspected, put back — invest in slit locks. The few extra cents in die-making pay for themselves when you avoid the “box won’t stay closed” complaints.
RTE vs STE for Tuck Boxes — Making the Right Call
RTE (reverse tuck end) and STE (straight tuck end) are the two dominant tuck box configurations. RTE saves material and lowers cost. STE delivers a cleaner front face. The decision usually comes down to three factors: your retail display method, your product weight, and your budget per unit.
If your box hangs on a peg hook or sits in a crowded shelf row where only the front panel is visible, STE gives you uninterrupted branding. If your box ships inside another package and shelf presence matters less, RTE saves you money without compromising function. For most tuck box printing China projects, buyers start with RTE and upgrade to STE only when the brand positioning justifies the premium.

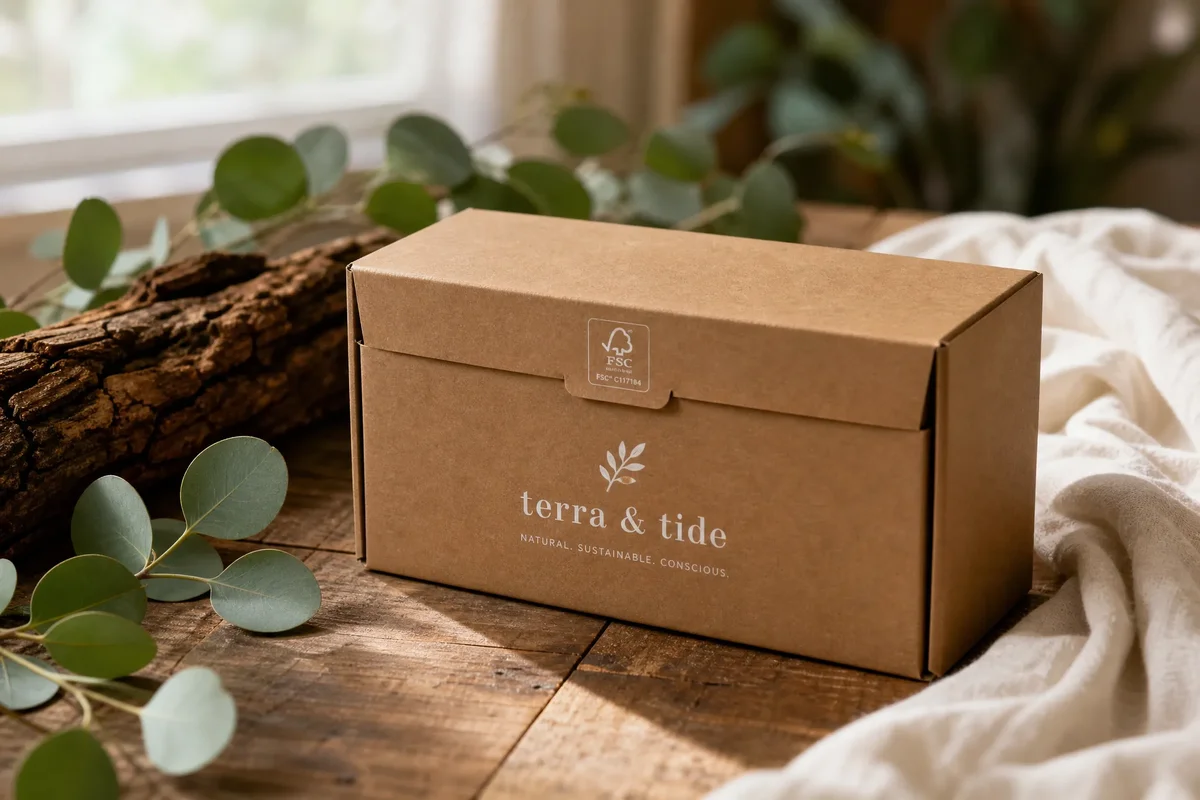

Kraft Box Printing — When Green Packaging Moves Product
Kraft box printing has grown from a niche eco-aesthetic into a mainstream packaging strategy. The numbers back it up. A 2024 global consumer survey found that 62% of shoppers actively try to buy products in renewable-material packaging. For e-commerce brands selling supplements, organic food, natural cosmetics, or wellness products, a custom kraft box is not just packaging — it is a brand statement.
Kraft paperboard is made from unbleached wood pulp, which gives it that characteristic brown look. It is fully recyclable, biodegradable, and compostable under industrial conditions. Unlike coated boards, kraft does not need a plastic lamination layer to look presentable — the natural texture is the aesthetic. That means fewer material layers, easier end-of-life disposal, and a lower environmental footprint across the entire packaging lifecycle.
FSC certification adds another layer of credibility. When you source kraft box printing China from an FSC-certified supplier, you get chain-of-custody documentation proving the paper fibers came from responsibly managed forests. For brands selling into the EU or markets with upcoming packaging waste regulations, FSC certification is rapidly shifting from “nice to have” to “must have.” The FSC logo on your box signals to consumers that your supply chain takes deforestation seriously — and 56% of consumers worldwide recognize the FSC label.
One honest caveat: kraft board does not reproduce bright, vibrant CMYK colors the way coated white board does. Colors print muted. Fine gradients can look muddy. If your brand identity relies on neon accents or photo-realistic product imagery, kraft might not be your first choice. But for brands that lean into the earthy, organic look — think minimalist typography, single-color logos, tactile uncoated surfaces — kraft packaging is one of the strongest conversion tools available.
Paperboard Selection — The Foundation Nobody Sees But Everyone Feels
People judge a box by how it feels in their hands before they read a single word on it. Flimsy board screams cheap, regardless of how good the design is. Over-spec the board and you waste money on stiffness nobody needs. The sweet spot depends on your product weight, your price point, and where the box lives — on a shelf, inside a shipping carton, or straight into a customer’s hands.

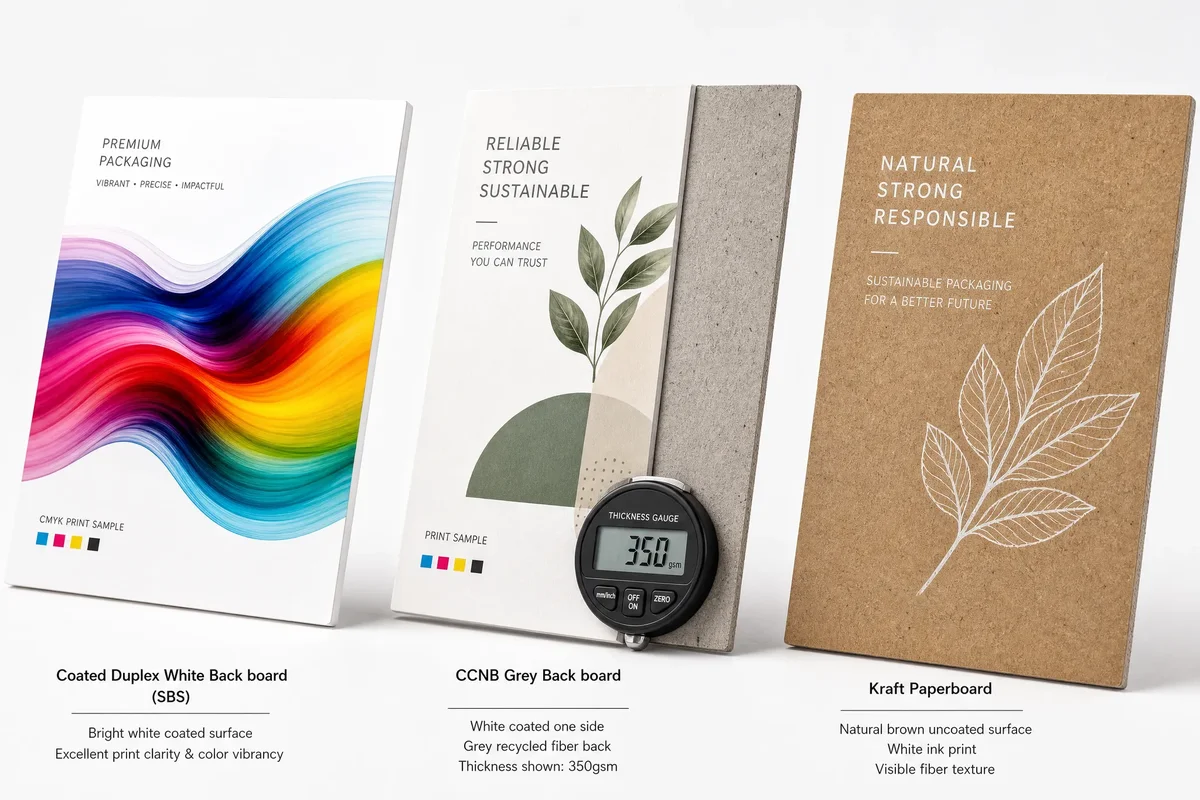

Here is how the three main paperboard grades compare for folding carton packaging .
Coated Duplex Board (White Back) — Premium Print, Premium Price
Coated duplex board with a white back — also called solid bleached sulfate (SBS) or folding box board (FBB) depending on the mill — is the top-tier option. Both sides are white. The surface is clay-coated for smooth ink adhesion. Print results are sharp, bright, and color-accurate.
Typical thickness for folding cartons ranges from 300 gsm to 400 gsm (roughly 16 pt to 24 pt). At 350 gsm, an SBS box feels substantial but not bulky. It handles foil stamping, embossing, and spot UV beautifully. This is the material behind premium skincare boxes, high-end supplement packaging, and luxury gift cartons. Price-wise, it is the most expensive of the three, usually 30 to 50 percent more than grey back board at equivalent thickness.
Grey Back Board (CCNB) — The Budget-Conscious Workhorse
Clay coated news back board — CCNB, also called duplex board with grey back — has a white coated front surface and an uncoated grey or brown reverse side. It is made primarily from recycled fibers, sometimes up to 90 percent post-consumer content. The coated front prints well enough for standard retail requirements. The grey back keeps costs down.
CCNB is softer than SBS at equivalent grammage, so you often need to go up one thickness grade to match the stiffness. Despite that, it remains the cheaper option. It dominates mass-market FMCG packaging — toothpaste boxes, pharmacy cartons, dry food boxes, laundry detergent sleeves. For brands that compete on volume rather than luxury perception, CCNB is usually the correct answer.
Kraft Paperboard — The Eco-Friendly Contender
Kraft board is unbleached, uncoated or lightly coated on one side, and ranges from 250 gsm to 450 gsm in typical folding carton applications. It is naturally stiffer than CCNB at the same weight because the fibers are longer and less processed. Print quality on uncoated kraft is deliberately rustic — solid blocks of color work well, but detailed photo reproduction does not. Some suppliers offer a lightly clay-coated kraft variant that improves printability while keeping the brown interior, but this adds cost and reduces recyclability slightly.
Kraft board typically costs 10 to 20 percent more than CCNB but 15 to 25 percent less than SBS. For brands that want to signal sustainability without paying the full SBS premium, it hits a compelling middle ground.
Printing, Finishing & Die-Cutting — How Your Box Comes to Life
The artwork is approved. The dieline is drawn. Now the box moves into production. Three main processes — printing, finishing, and die-cutting — determine how it looks, feels, and folds.

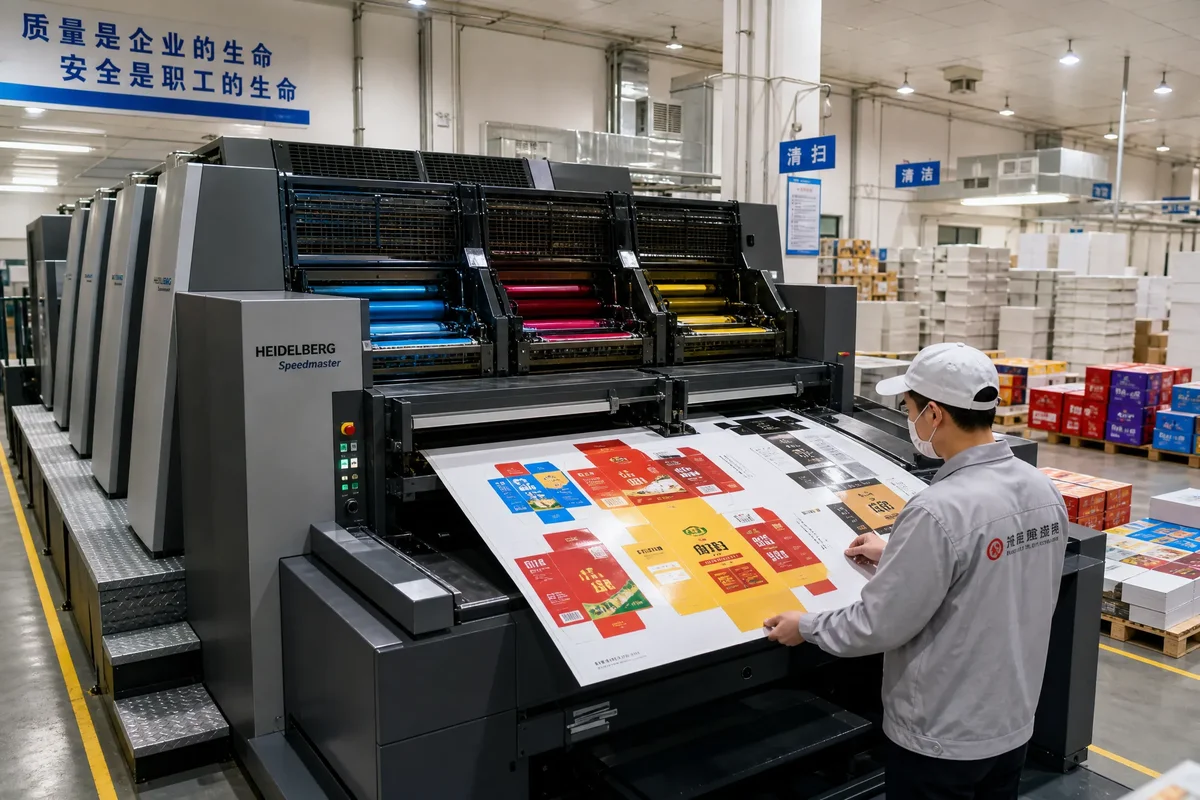

Offset Printing — King of Large Runs
Offset lithography remains the dominant print method for folding carton production. It uses aluminum printing plates to transfer ink onto the paperboard via a blanket cylinder. Setup costs come from plate-making and press makeready — typically $400 to $800 total for a four-color job from a folding carton packaging China supplier. Those setup costs get divided across the run, which is why offset printing only makes economic sense above roughly 1,000 to 2,500 units. Above 5,000 units, the per-unit print cost drops dramatically.
Offset delivers consistent, high-resolution results with accurate Pantone color matching. It handles large sheets efficiently, which matters for folding cartons because you can gang multiple SKUs on one sheet to reduce waste. For brands ordering 10,000-plus boxes, offset is almost always the right call.
Digital Printing — Short Runs and Lightning-Fast Samples
Digital printing skips the plates entirely. The press lays ink or toner directly onto the board from a digital file. No plate costs. No makeready waste. MOQs can go as low as 50 to 250 units.
The trade-off is per-unit cost. Digital printing costs more per sheet at scale because you lose the economies that offset plates provide. Color consistency can also vary slightly between runs, though modern HP Indigo and similar presses have narrowed that gap significantly. Digital printing shines for startups testing the market, limited-edition seasonal packaging, and rush orders where lead time matters more than unit cost.
Post-Press Finishing — The Details That Define Premium
Once the board is printed, finishing processes add texture, protection, and visual impact. The most common options include:
Foil stamping applies a thin layer of metallic foil — gold, silver, copper, holographic — onto specific areas of the box using heat and pressure. Embossing raises the paper surface to create a three-dimensional effect; debossing presses it down. Spot UV applies a high-gloss clear coating to selected areas, creating contrast between glossy and matte surfaces. Soft-touch or matte lamination covers the entire surface with a velvety finish that resists fingerprints and scuffs.
Each finish adds cost and lead time. Foil stamping requires a separate metal die. Spot UV needs a screen or plate. If your project runs on a tight budget, pick one hero finish — foil on the logo, or spot UV on the product name — rather than stacking three or four effects that inflate costs without proportional impact.
Die-Cutting — The Shape Your Brand Deserves
Die-cutting is where the flat printed sheet becomes a three-dimensional box. A steel-rule die — essentially sharp blades embedded in a plywood form — punches through the paperboard, cutting the outline and scoring the fold lines in a single press stroke.
Die-making is a one-time cost per SKU. For a standard tuck-end box, a die typically costs $80 to $200 from a Chinese supplier. For complex shapes with curved edges, windows, or multiple locking tabs, expect $200 to $500. The die lasts for tens of thousands of impressions before needing replacement. Custom shapes — hexagons, rounded corners, cut-out handles — all require unique dies and add cutting complexity, but they also create packaging that competitors cannot easily replicate. For custom tuck box projects, the die is where brand differentiation actually happens at the structural level.
MOQ, Tooling Costs & Unit Price — What the Numbers Actually Look Like
Price is the question every buyer asks first, but the answer depends on variables most first-time buyers overlook. Here is a realistic breakdown for sourcing from China-based manufacturers.
MOQ by Box Type
For offset-printed folding cartons, most Chinese suppliers set MOQs between 500 and 2,500 units. Digital-printed runs can start as low as 50 to 250 units. Kraft boxes follow similar ranges. Tuck boxes with standard RTE construction tend toward the lower end because they are simpler to produce. Boxes with auto-lock bottoms, windows, or multiple finishing processes push the MOQ higher because the setup complexity increases.
The real MOQ driver is not the factory’s willingness to run small orders — it is economics. Below roughly 1,000 units, the fixed setup costs (plates, die, makeready) dominate the unit price. At 500 units, you might pay $1.20 per box. At 10,000 units, that same box might cost $0.40. The factory’s per-unit margin barely changes. The fixed costs simply divide across more units.
Unit Cost Comparison — Folding Carton vs Tuck Box vs Kraft Box
A standard four-color offset-printed folding carton at 5,000 units — roughly 150 mm × 80 mm × 30 mm, 350 gsm white back board, matte lamination — lands around $0.45 to $0.70 per unit from a mid-tier Chinese supplier. An equivalent tuck box with RTE construction is usually 5 to 10 percent cheaper because the structural design wastes less material. A kraft box in the same size and quantity runs $0.40 to $0.60, with the material cost sitting between CCNB and SBS.
Die-making costs are typically separate and one-time: $80 to $300 depending on complexity. Printing plates for offset add another $100 to $200 for a full CMYK set. These are sunk costs you only pay once per SKU design.

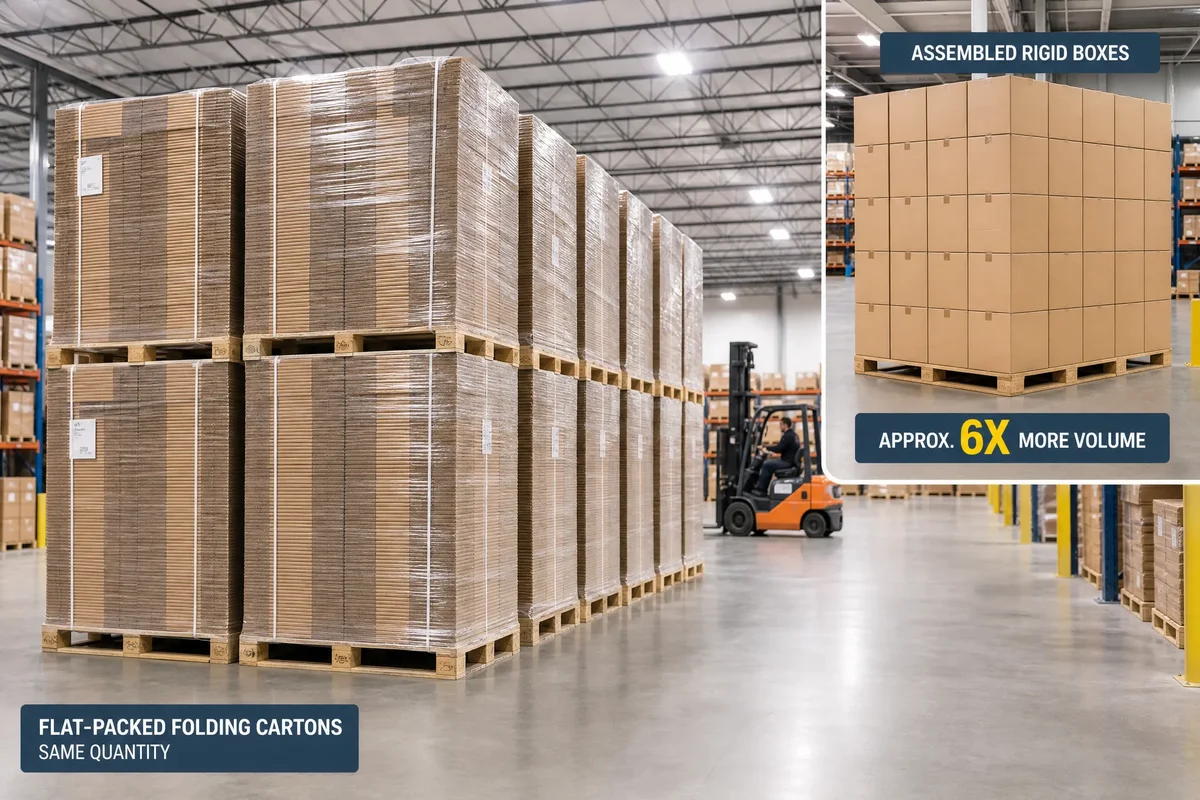

Flat-Packed Shipping — The Hidden Cost Advantage
Folding cartons, tuck boxes, and kraft boxes all share one massive logistical advantage over rigid boxes: they ship flat. A standard 20-foot container that holds roughly 30,000 flat-packed folding cartons might hold only 3,000 to 5,000 pre-assembled rigid boxes. That 6× to 10× density difference directly impacts freight cost per unit.
For sea freight from Shenzhen or Ningbo to Los Angeles or Rotterdam, flat-packed cartons typically cost $0.02 to $0.06 per unit in shipping. Rigid boxes can run $0.15 to $0.40 per unit. Over a 50,000-unit order, the difference adds up to thousands of dollars. If your warehouse has the labor to assemble boxes on-site — or if your co-packer handles assembly — flat-packed folding cartons are the highest-density, lowest-freight-cost packaging format available.
Quality Control — What to Inspect Before You Sign Off
Boxes look great on the proof. They can look very different on the pallet. A disciplined incoming QC process catches problems before they reach your customer. Here are the five checks that matter most for folding carton, tuck box, and kraft box orders.
First, material thickness. Use a micrometer or caliper to measure the board thickness at multiple points on multiple boxes. A supplier spec of 350 gsm should correspond to roughly 0.44 to 0.45 mm for duplex board. Variations beyond ±5 percent indicate board substitution or inconsistent mill sourcing. Thinner board than specified is one of the most common QC failures in packaging imports.
Second, color consistency. Compare production samples against your approved color proof under standardized lighting — D50 or D65, not the fluorescent lights in the warehouse lobby. Check the same color area across boxes from different positions in the print run. Slight density shifts are normal; visible differences between boxes in the same carton are not.
Third, creasing accuracy. Fold every box along its score lines. The fold should follow the crease cleanly without cracking the printed surface. Cracking — especially on dark solid-color areas — indicates the creasing rule depth was set incorrectly or the board was too dry during production. On coated boards, cracking at folds is the number one reason buyers reject shipments.
Fourth, glue adhesion. For boxes with glued sides or bottoms, apply gentle pressure to the glued seam. It should hold firmly without separating. Check for glue squeeze-out — excess adhesive that oozes beyond the seam and stains the printed surface. Both under-gluing and over-gluing signal sloppy production.
Fifth, assembly fit. Grab a random sample of 20 to 50 boxes and assemble them. Do the tuck flaps insert smoothly? Do dust flaps sit flush? Does the auto-lock bottom lock securely every time? If assembly feels inconsistent — some boxes snap together perfectly while others fight you — the die-cut tolerances are drifting and production needs recalibration.
A factory that is serious about quality will provide an in-line inspection report with these checkpoints documented. If your supplier cannot produce one, budget for third-party inspection before the container leaves the port. The cost — usually $300 to $500 per inspection day in China — is trivial compared to the cost of receiving 50,000 unusable boxes.
